Workbench Task Lighting using Armacost LED Strip Lighting

It's been a busy summer - I haven't had much time for posting - so I figured I would get back into the game with a pretty simple one. I wrote earlier about my garage organization project using Ikea kitchen cabinets - full height wall cabinets, combined with upper wall cabinets above my table saw, mini fridge and mini freezer. You can check out that post here.

Completed Installation - LED Strip Lights underneath wall cabinets, lighting work surface / freezer

The table saw and freezer make a pretty handy worktable when I'm not using the table saw. I thought I would add some task lighting over the table saw, and decided to try out Lee Valley Tools new LED strip lighting kits. They have all kinds of options - white or mulicoloured LEDs with various LED spacing for different intensities, and transformers of various capacities to match the current requirements of the installed LEDs. They also have some dimmers, switches to round out the installation. I made my lighting plan, decided to go with white LEDs with a one LED every 1/2 inch spacing (high intensity) and the appropriate transformer.

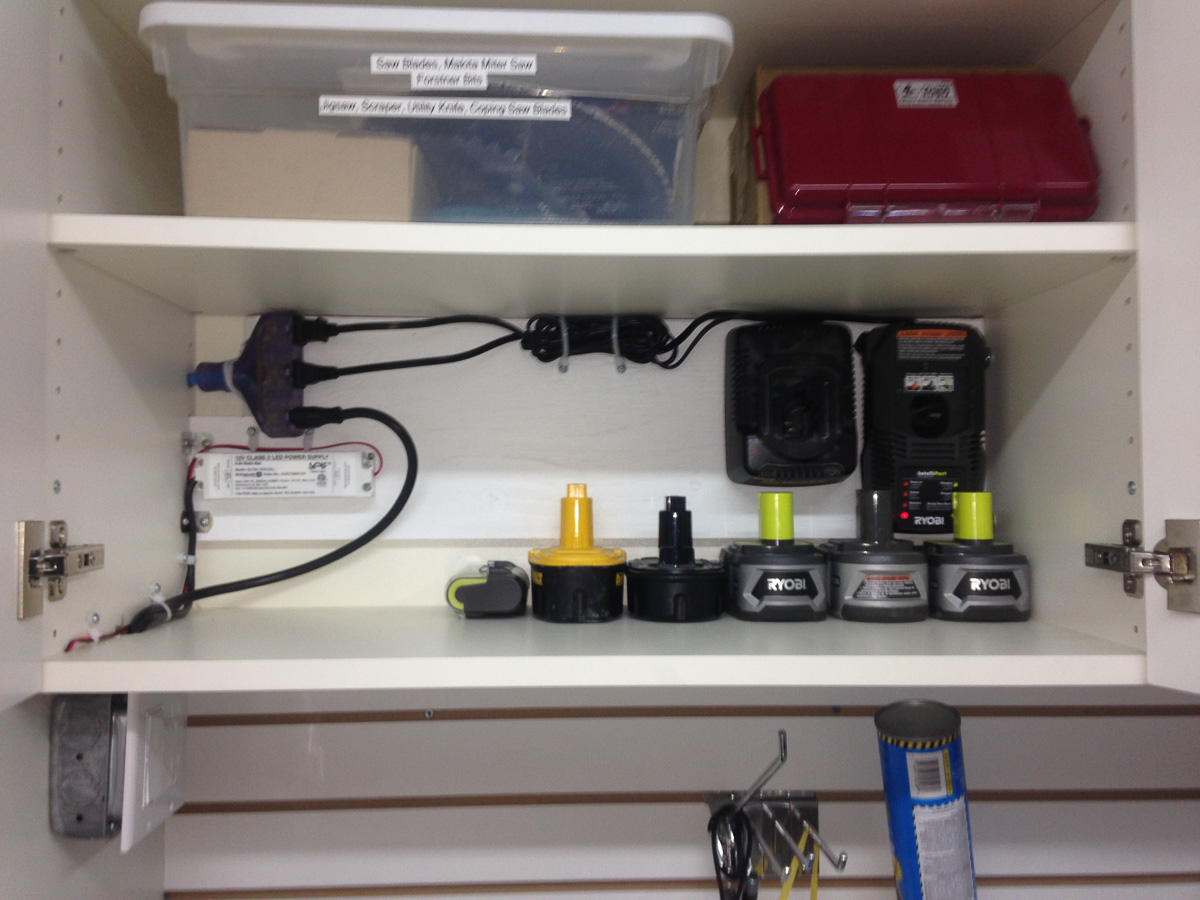

Power Supply Mounted in the Wall Cabinet - with all my tool chargers

The LED light strips are high quality - you can select between two different white colors - warm or natural white - and the light strips come with a 3M adhesive backing to apply directly to the application surface. I decided to go with the natural white in the garage, and the light is bright and clear - perfect for task lighting. Prior to application of the light strips, I used a bit of brake cleaner on a rag to clean off the melamine lower surface of the Ikea cabinets - just to ensure I would get good adhesion. This worked fine - 18 months following installation the LED strips haven't moved or delaminated.

The Lee Valley Kit comes with connectors to allow you to cut the strips to custom length

I decided to control the light strip 30W transformer with an Insteon switch for automation control, and installed the switch and a two plug outlet in a 4" junction box using a twin outlet cover plate. This way, I got 2 electrical outlets above the table saw. I mounted the transformer inside the Ikea cabinet on the plywood board I installed for all my cordless tool chargers.

Surface Mount Junction Box with Switch Adapter Cover Plate, Insteon Control Switch, and Power Outlet

Conclusion

The Lee Valley LED light kits are top quality, very versatile with many options. I have above average confidence that if I need to repair or modify this installation, I'll be able to get parts or components from Lee Valley in the future. The finished installation is neat and professional looking, the light quality is very good and suited for the application. All in all - very satisfied with this product.

Light thrown from completed installation.

Sources and Links

I hope you found this post useful. Feel free to ask questions in the comments section below. I answer all questions. The Armacost lighting components were sources from Lee Valley Tools.
